Technical Specification

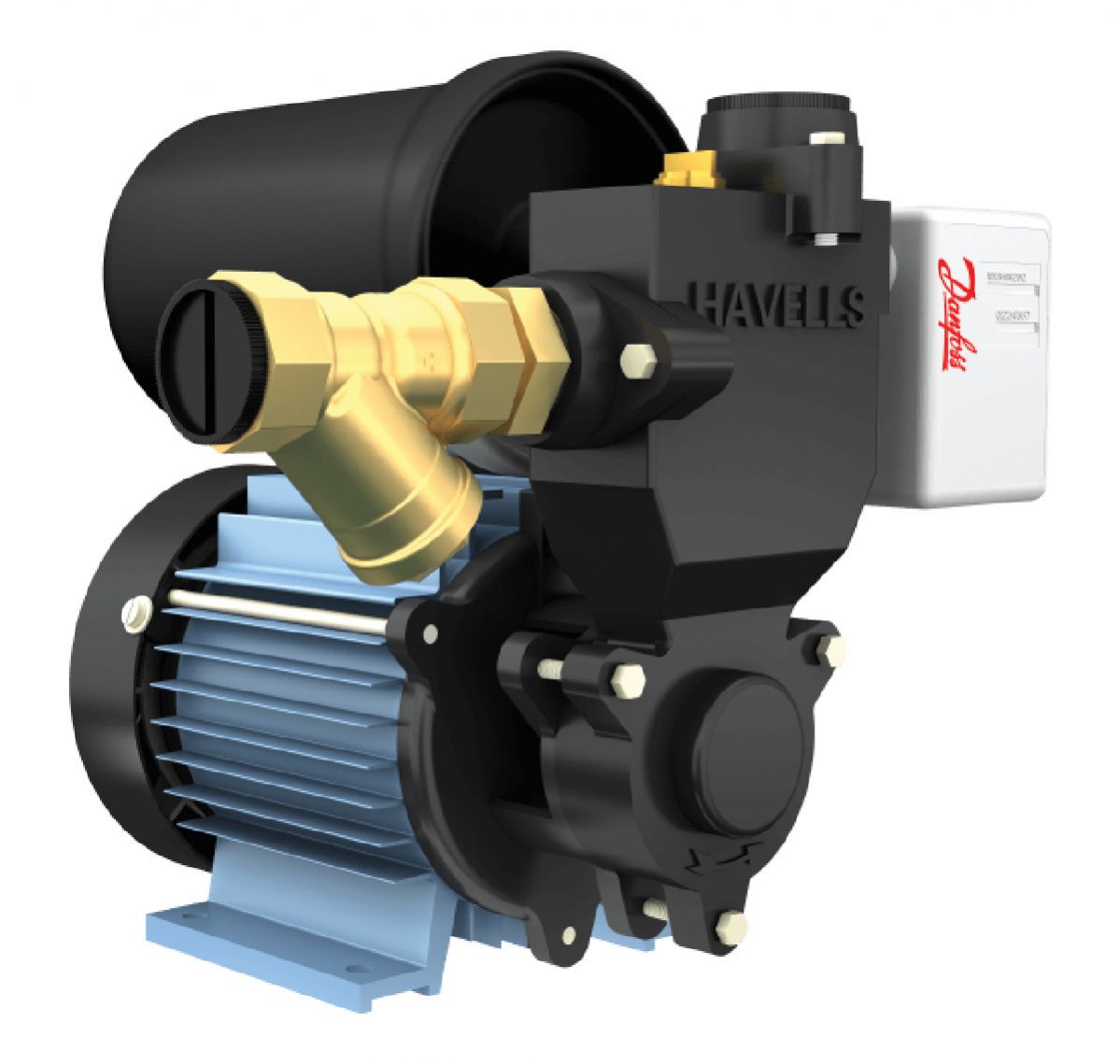

Sales Package (s) | Net contents | 1 N Pump Set, 1 N Instruction Manual, 1 N Y-Strainer, 1 N Hydro-Pneumatic Tank |
basic features | applications | For
residential pressure boosting applications like Faucets, Showers &
Washing machines etc, For constant pressure applications in industry. | | low power consumption | Yes | | Maximum working pressure | 2.7 kg / cm² | | operating water temperature | Ambient temperature | | suitable for | Single Phase Supply, Suitable for 1-2 Faucets |
dimensions and weight | Cable length and Size | 0.3 m & 1.0 sq. mm |
dimensions weight | packaging dimensions WxHxD | 30.5 cm x 26.5 cm x 33 cm | | gross weight | 10.5 kg |
accessories motor features | direction of rotating | Anti-clockwise when viewed from driving end | | dynamically balanced rotor | Yes | | motor body | High-quality Extruded aluminium body | | motor speed | 2900 Revolution per minute | | motor stator | CRC Prossed grade stampings | | pipe size | 25 mm x 25 mm (2.5 cm x 2.5 cm) | | winding type | Copper winding |
power details | power | 0.5 HP | | rated frequency | 50 Hz | | rated power input | 0.37 kW | | voltage operating range | 170 V to 270 V |
pump features | pump casing | Cast iron | | impeller | Forged brass | | shaft | C45 (EN8) |
discharge in litre hour at various heights | 6 metre in L / h | 1340 L / h |
|
